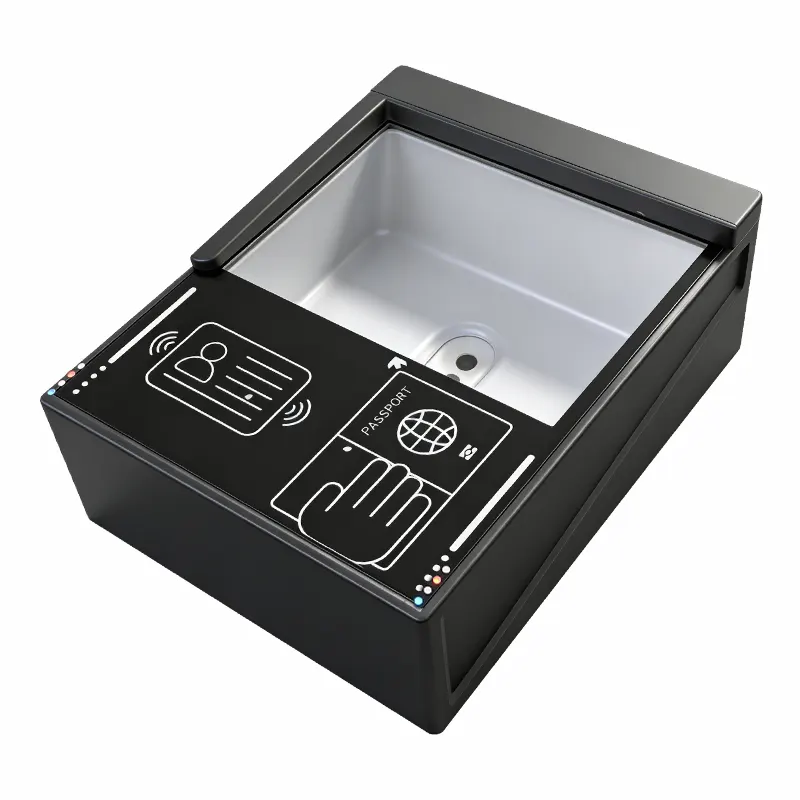

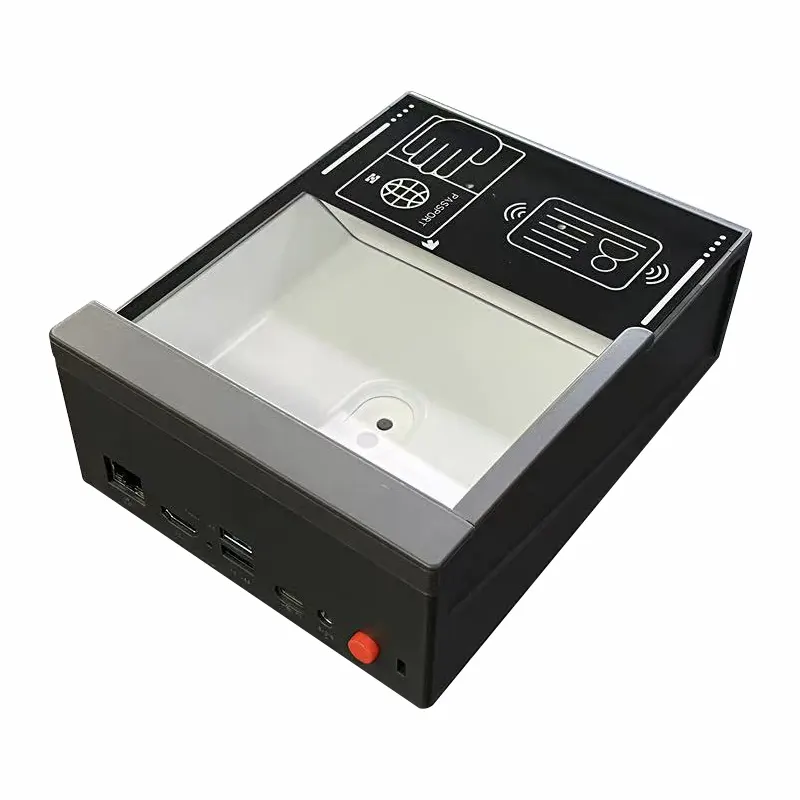

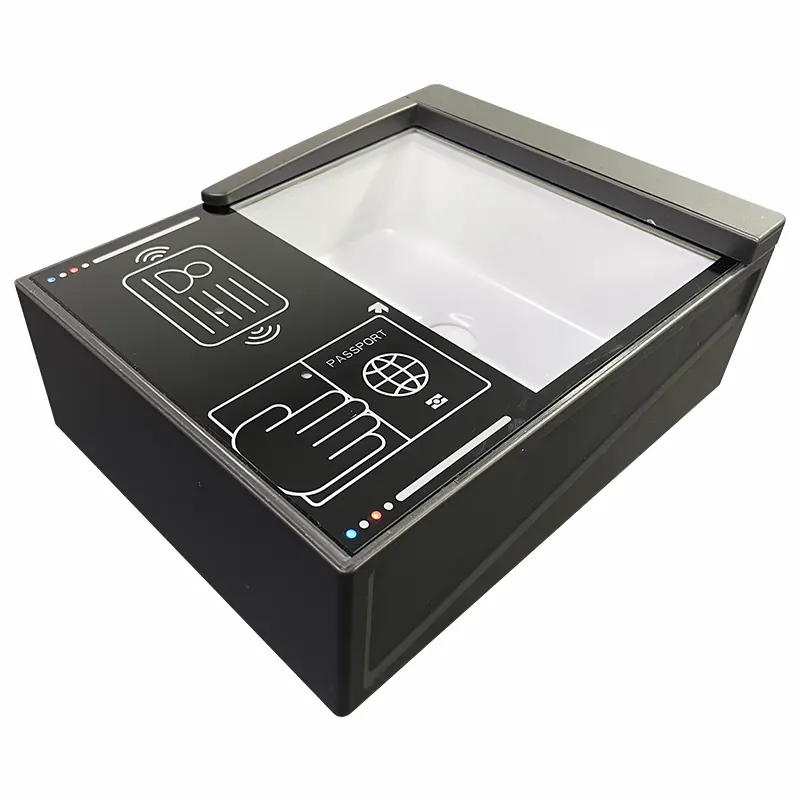

Product Ultra-Slim PC-Free Passport Reader TH-ER430 Passport Reader

Function Introduction

Supports reading e-passports from over 200 countries in compliance with the ICAO DOC 9303 standard, as well as paper passports and more than 80 other document types, including domestic and international driver’s licenses, visas, Hong Kong and Macao IDs, Home Return Permits, and Taiwan Resident Permits.
Multiple Document Recognition

Supports reading e-passports from over 200 countries in compliance with the ICAO DOC 9303 standard, as well as paper passports and more than 80 other document types, including domestic and international driver’s licenses, visas, Hong Kong and Macao IDs, Home Return Permits, and Taiwan Resident Permits.

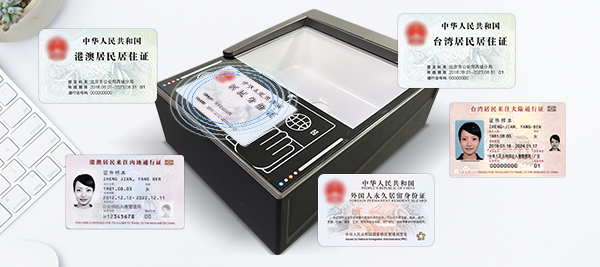

PRC Resident ID (2nd generation), Foreigner Permanent Residence ID, Hong Kong/Macau/Taiwan Resident Permits, Home Return Permits, and Taiwan Compatriot Permits.
Supports multiple ID card types

PRC Resident ID (2nd generation), Foreigner Permanent Residence ID, Hong Kong/Macau/Taiwan Resident Permits, Home Return Permits, and Taiwan Compatriot Permits.

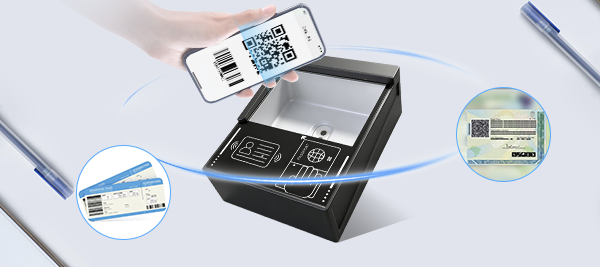

Built-in high-precision scanner capable of reading extra-long boarding pass barcodes, ID QR codes, and bright mobile screen QR codes, while preventing NFC interference for enhanced stability.
Barcode/QR Code Recognition

Built-in high-precision scanner capable of reading extra-long boarding pass barcodes, ID QR codes, and bright mobile screen QR codes, while preventing NFC interference for enhanced stability.

Supports high-accuracyextraction of personal portraitimages from both the physicaldocument and the embedded chip.
Portrait Extraction

Supports high-accuracyextraction of personal portraitimages from both the physicaldocument and the embedded chip.

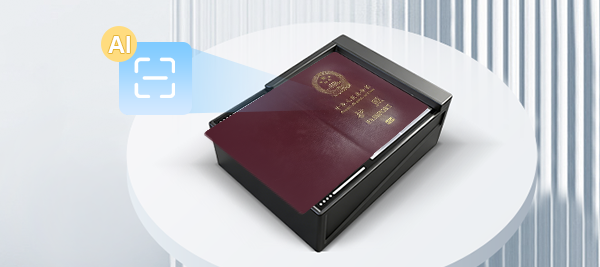

Built-in high-performance AI computing unit enables fully local, independent recognition without relying on a host computer. Delivers ultra-fast identification and card-reading speeds, without consuming user-side computing resources, and remains unaffected by low-performance application platforms for consistent, stable operation.
Built-in AI Processing for PC-Free Operation

Built-in high-performance AI computing unit enables fully local, independent recognition without relying on a host computer. Delivers ultra-fast identification and card-reading speeds, without consuming user-side computing resources, and remains unaffected by low-performance application platforms for consistent, stable operation.

Compatible with leading operating systems, including Kylin, UOS, HarmonyOS NEXT, Android, iOS, macOS, Windows, and Linux.
Secondary Development Support & Full Cross-Platform Compatibility

Compatible with leading operating systems, including Kylin, UOS, HarmonyOS NEXT, Android, iOS, macOS, Windows, and Linux.

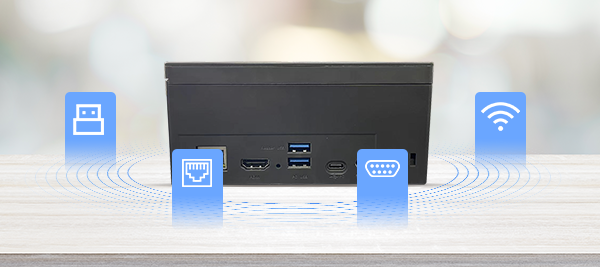

Supports multiple communication interfaces, including USB 3.0 and Gigabit Ethernet, ensuring fast integration and stable data transmission in diverse deployment environments.
Multi-Protocol Connectivity & Flexible Interface Options

Supports multiple communication interfaces, including USB 3.0 and Gigabit Ethernet, ensuring fast integration and stable data transmission in diverse deployment environments.

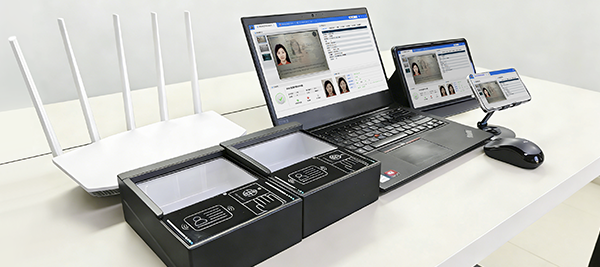

Removes traditional connection limits by allowing one industrial PC to connect to multiple passport readers in different gates, while also supporting multiple computers connecting to a single device. Integrators can flexibly match hardware quantities based on project needs, reducing procurement and maintenance costs.
Flexible multi-device connectivity

Removes traditional connection limits by allowing one industrial PC to connect to multiple passport readers in different gates, while also supporting multiple computers connecting to a single device. Integrators can flexibly match hardware quantities based on project needs, reducing procurement and maintenance costs.

Product Superiority

Pioneering ultra-slim design combined with a fully PC-free operating mode facilitates easy integration and consistently fast, stable recognition performance.
Ultra-Slim + Fully PC-Free Operation
Pioneering ultra-slim design combined with a fully PC-free operating mode facilitates easy integration and consistently fast, stable recognition performance.
Supports all-in-one recognition of ID documents, extended boarding pass barcodes, and mobile QR codes, minimizing external barcode module integration.
All-in-One Scanning for ID Documents + Extra-Long Barcodes
Supports all-in-one recognition of ID documents, extended boarding pass barcodes, and mobile QR codes, minimizing external barcode module integration.
13-megapixel resolution and 800 DPI scanning accuracy deliver clear, detailed imaging, enabling precise authentication and forgery detection of passports.
Ultra-High Definition Imaging
13-megapixel resolution and 800 DPI scanning accuracy deliver clear, detailed imaging, enabling precise authentication and forgery detection of passports.
Connect your phone, tablet, and computer simultaneously. Data syncs in real time, enabling seamless multi-user collaboration across devices.
Connect All, Switch Freely
Connect your phone, tablet, and computer simultaneously. Data syncs in real time, enabling seamless multi-user collaboration across devices.
Designed for outdoor environments and capable of suppressing strong light, ensuring stable reading even under direct sunlight and challenging exposure conditions.
Outdoor Ready with Anti-Glare Interference Design
Designed for outdoor environments and capable of suppressing strong light, ensuring stable reading even under direct sunlight and challenging exposure conditions.
Fully compatible with leading operating systems including Kylin, UnionTech UOS, HarmonyOS NEXT, Android, iOS, macOS, Windows, and Linux.
Compatibility Across All Mainstream Operating Systems
Fully compatible with leading operating systems including Kylin, UnionTech UOS, HarmonyOS NEXT, Android, iOS, macOS, Windows, and Linux.

Application Scenarios

  • Tourist Attraction
  • Airport
  • High-Speed Rail Station
  • Border Control

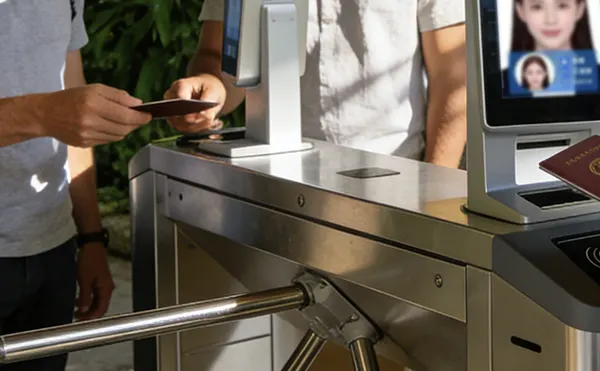

Tourist Attraction

The ER passport reader integrates seamlessly with tourist attraction ticketing systems and smart gate to provide fast and accurate recognition of travel documents for visitors from Hong Kong, Macao, Taiwan, and overseas, significantly enhancing entry efficiency and the overall admission experience. It also supports reliable identification of common local documents, including student IDs, examination permits, and senior or disability cards, enabling convenient implementation of free-entry and discount policies. Designed for semi-outdoor environments, the ER features strong light suppression and protective construction to ensure stable operation under direct sunlight or exposure to rain, supporting efficient and reliable attraction management.

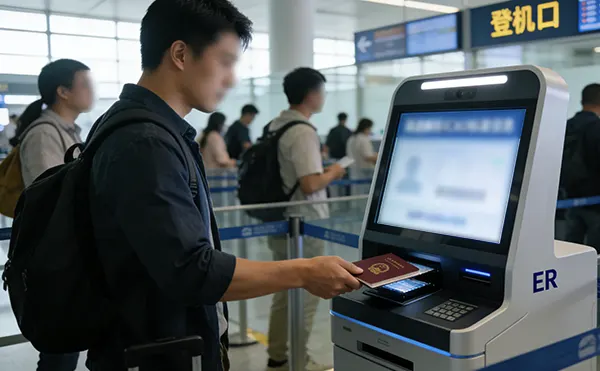

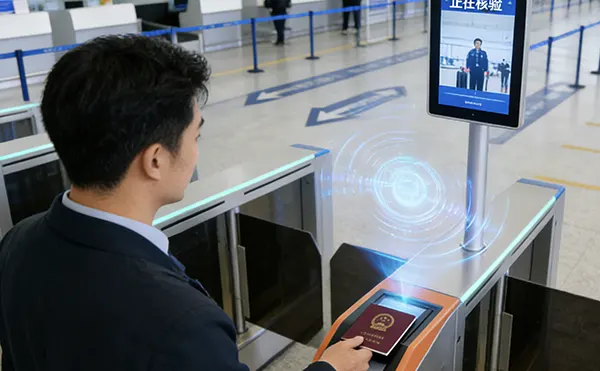

Airport

At critical airport touchpoints such as security checkpoints, boarding gates, and self-check-in kiosks, the ER Passport Reader enables high-speed and precise reading of passenger passports, boarding passes, and QR codes—effectively reducing queue times. Supporting ICAO-compliant data parsing and multilingual document processing, the device enables rapid identity verification, document authentication, and structured data extraction. Equipped with 800-DPI high-definition imaging and built-in AI processing capabilities, it further elevates levels of process automation. Engineered to operate reliably under complex lighting conditions and high passenger throughput, the ER system ensures stable and dependable performance, helping airports enhance clearance efficiency and the overall passenger experience.

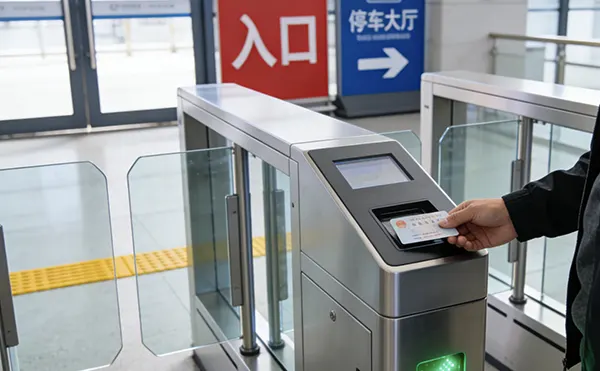

High-Speed Rail Station

At high-speed rail stations, the ER Passport Reader enables rapid recognition of passports, travel permits for Hong Kong, Macao, and Taiwan residents, as well as travel documents for foreign passengers across real-name ticket inspection, automated gate control, and manned service counters—ensuring standardized collection and verification of passenger identity information. The device supports integrated reading of barcodes, QR codes, and document data, providing reliable data support for processes such as e-ticketing and self-service access. Leveraging 800-DPI high-definition imaging and built-in AI processing, it significantly improves reading efficiency and helps relieve passenger flow pressure during peak periods.

Border Control

In high-security scenarios such as border checkpoints, immigration inspection lanes, and self-service clearance gates, the ER Passport Reader provides high-speed and precise reading of passports and multiple international electronic documents, fully complying with ICAO standards. The device supports multi-element information extraction, including facial images, MRZ, and VIZ data. Leveraging 800-DPI high-definition imaging and built-in AI processing, it assists in document authenticity verification and provides reliable data support for risk screening and identity verification.

Case

License plate recognition camera applied to smart logistics park platform
Credential recognition improves telecom authentication efficiency
Wintone OCR empowers enterprise dealer system digitization

Product parameters

  • TH-ER430 Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Reading Light type Image Resolution
    √ √ √ - VL, IR 13 MP, up to 800 DPI
    Detalis
    Parameter Name Parameter Specifications
    Hardware Configuration CPU Quad-core ARM Cortex-A76 + Quad-core ARM Cortex-A55
    NPU 6 TOPS Neural Processing Unit
    Memory (RAM) 8GB LPDDR4x
    Storage 32GB eMMC
    Sunshade Detachable and angle-adjustable
    Glass Borosilicate float glass, Nuss hardness 0.1/20 (ISO 9385): 480.
    Glass can be replaced directly from the top surface without removing the gate/turnstile.
    Image Acquisition Main Camera Capture area is 126 × 91 mm and supports full-page passport capture
    13 MP sensor, up to 800 DPI resolution
    Supports multi-spectrum imaging: visible light, infrared (IR)
    Communication USB, Ethernet
    USB Interfaces USB 3.1 Gen1 Type-C — used for connection to the host PC
    USB 3.1 Gen1 Type-A — Reader USB
    USB 3.1 Gen1 Type-A — PC USB
    Ethernet Interface Gigabit RJ45 interface
    HDMI Interface HDMI 2.1, supports connection to an external display
    Reset Button Long press for 5 seconds to restore factory settings
    Light Source Includes visible light, IR 850 nm;
    Supports anti-glare illumination for clearer image capture
    Status Indicator Includes power indicator, ready indicator, error indicator, and reader status indicator
    Progress Indicator Document reading progress indicator; supports user-defined display modes
    Buzzer Built-in buzzer
    Document Image Rotation Supports automatic document rotation; images are automatically corrected to the upright orientation regardless of the direction in which the document is placed
    Portrait Cropping Automatically crops the photo area while ensuring the face and head remain fully visible,
    non-photo areas occupy only a small portion of the image, with no glare spots covering the photo
    Machine-Readable Travel Document (MRTD) Reading MRZ Capable of reading all ICAO-compliant machine-readable travel documents, as well as Chinese non-ICAO documents, and parsing MRZ data
    Chip Reading Supports ICAO 9303-compliant electronic passports (ePassports)
    Supports ISO 14443 Type A/B contactless cards
    Supports BAC and PACE for ePassports
    Supports Passive Authentication (PA) to verify document data authenticity
    Supports Active Authentication (AA) to verify chip authenticity
    Data rate: up to 848 Kbps
    VIZ Supports VIZ recognition for passports from multiple countries, including but not limited to the United States, United Kingdom, Japan, Switzerland, Spain, Australia, Canada, Türkiye, China, and nearly 200 other countries and regions
    Chinese Document Recognition OCR Recognition Supports image capture and information extraction for a wide range of Chinese identity and travel documents, including the 2nd generation Resident Identity Card, passport, Mainland Travel Permit for Hong Kong and Macao Residents, Mainland Travel Permit for Taiwan Residents, Travel Permit for Mainland Residents to Taiwan, residence permits for Hong Kong, Macao, and Taiwan residents, Macau Identity Card, Hong Kong Identity Card, border pass, seaman’s certificate, driver’s license, and other identity and travel documents
    Chip/Card Reading Home Return Permit and Taiwan Compatriot Permit (both front and back sides)
    International Document Reading Supports reading ICAO 9303-compliant passports as well as identity cards, vehicle registration certificates, driver’s licenses, and other documents from multiple countries
    Light Sensitivity Built-in photosensor to prevent RF interference
    Operating System Compatibility Supports Windows, Linux, Kylin, UnionTech UOS, HarmonyOS NEXT, Android, iOS, and macOS
    Software Integration Supports WebSocket (Windows, Linux, domestic operating systems)
    SDK (Windows, Linux, domestic operating systems)
    HTTP, TCP, and serial communication protocols
    Android SDK
    Operating Environment Lighting Supports use under strong light conditions, including direct sunlight, up to 50,000 Lux
    Temperature -10°C to 55°C
    Humidity 10%–90% RH, non-condensing
    Power Switch Independent power switch
    Power Supply Uses an external standard power adapter, adapter specifications:
    Input AC 100–240V, 50–60Hz, 0.8A
    Output DC 12V, 2A
    Lock Slot 1 slot for anti-theft lock
    Color Dark gray
    Physical Specifications Dimensions: 185 × 143 × 66.7 mm (L*W*H, excluding sunshade and pressing bar)
    Net Weight: 0.92 kg (excluding sunshade)
    Gross Weight: 1.82 kg
    Service and Maintenance 24/7 technical support via phone, email, and online services (365*24)
    1-year hardware warranty, lifetime maintenance support



  • TH-ER610 Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Reading Light type Image Resolution
    √ √ √ - VL, IR, UV 13 MP, up to 800 DPI
    Detalis
    Parameter Name Parameter Specifications
    Hardware Configuration CPU Quad-core ARM Cortex-A76 + Quad-core ARM Cortex-A55
    NPU 6 TOPS Neural Processing Unit
    Memory (RAM) 8GB LPDDR4x
    Storage 32GB eMMC
    Sunshade Detachable and angle-adjustable
    Glass Borosilicate float glass, Nuss hardness 0.1/20 (ISO 9385): 480.
    Glass can be replaced directly from the top surface without removing the gate/turnstile.
    Image Acquisition Main Camera Capture area is 126 × 91 mm and supports full-page passport capture
    13 MP sensor, up to 800 DPI resolution
    Supports multi-spectrum imaging: visible light, infrared (IR), and ultraviolet (UV)
    Communication USB, Ethernet
    USB Interfaces USB 3.1 Gen1 Type-C — used for connection to the host PC
    USB 3.1 Gen1 Type-A — Reader USB
    USB 3.1 Gen1 Type-A — PC USB
    Ethernet Interface Gigabit RJ45 interface
    HDMI Interface HDMI 2.1, supports connection to an external display
    Reset Button Long press for 5 seconds to restore factory settings
    Light Source Includes visible light, IR 850 nm, and UV 365 nm;
    Supports anti-glare illumination for clearer image capture
    Status Indicator Includes power indicator, ready indicator, error indicator, and reader status indicator
    Progress Indicator Document reading progress indicator; supports user-defined display modes
    Buzzer Built-in buzzer
    Document Image Rotation Supports automatic document rotation; images are automatically corrected to the upright orientation regardless of the direction in which the document is placed
    Portrait Cropping Automatically crops the photo area while ensuring the face and head remain fully visible,
    non-photo areas occupy only a small portion of the image, with no glare spots covering the photo
    Machine-Readable Travel Document (MRTD) Reading MRZ Capable of reading all ICAO-compliant machine-readable travel documents, as well as Chinese non-ICAO documents, and parsing MRZ data
    Chip Reading Supports ICAO 9303-compliant electronic passports (ePassports)
    Supports ISO 14443 Type A/B contactless cards
    Supports BAC and PACE for ePassports
    Supports Passive Authentication (PA) to verify document data authenticity
    Supports Active Authentication (AA) to verify chip authenticity
    Data rate: up to 848 Kbps
    VIZ Supports VIZ recognition for passports from multiple countries, including but not limited to the United States, United Kingdom, Japan, Switzerland, Spain, Australia, Canada, Türkiye, China, and nearly 200 other countries and regions
    Chinese Document Recognition OCR Recognition Supports image capture and information extraction for a wide range of Chinese identity and travel documents, including the 2nd generation Resident Identity Card, passport, Mainland Travel Permit for Hong Kong and Macao Residents, Mainland Travel Permit for Taiwan Residents, Travel Permit for Mainland Residents to Taiwan, residence permits for Hong Kong, Macao, and Taiwan residents, Macau Identity Card, Hong Kong Identity Card, border pass, seaman’s certificate, driver’s license, and other identity and travel documents
    Chip/Card Reading Supports reading of the 2nd generation Resident Identity Card, Foreigner’s Permanent Residence Identity Card, residence permits for Hong Kong, Macao, and Taiwan residents, Home Return Permit (both front and back sides), and Taiwan Compatriot Permit (both front and back sides)
    International Document Reading Supports reading ICAO 9303-compliant passports as well as identity cards, vehicle registration certificates, driver’s licenses, and other documents from multiple countries
    Light Sensitivity Built-in photosensor to prevent RF interference
    Operating System Compatibility Supports Windows, Linux, Kylin, UnionTech UOS, HarmonyOS NEXT, Android, iOS, and macOS
    Software Integration Supports WebSocket (Windows, Linux, domestic operating systems)
    SDK (Windows, Linux, domestic operating systems)
    HTTP, TCP, and serial communication protocols
    Android SDK
    Operating Environment Lighting Supports use under strong light conditions, including direct sunlight, up to 50,000 Lux
    Temperature -10°C to 55°C
    Humidity 10%–90% RH, non-condensing
    Power Switch Independent power switch
    Power Supply Uses an external standard power adapter, adapter specifications:
    Input AC 100–240V, 50–60Hz, 0.8A
    Output DC 12V, 2A
    Lock Slot 1 slot for anti-theft lock
    Color Dark gray
    Physical Specifications Dimensions: 185 × 143 × 66.7 mm (L*W*H, excluding sunshade and pressing bar)
    Net Weight: 0.98 kg (excluding sunshade)
    Gross Weight: 1.88 kg
    Service and Maintenance 24/7 technical support via phone, email, and online services (365*24)
    1-year hardware warranty, lifetime maintenance support



  • TH-ER610(B) Passport Reader
    RFID Reading OCR Processing Auto-Trigger Barcode Reading Light type Image Resolution
    √ √ √ √ VL, IR, UV 13 MP, up to 800 DPI
    Detalis
    Parameter Name Parameter Specifications
    Hardware Configuration CPU Quad-core ARM Cortex-A76 + Quad-core ARM Cortex-A55
    NPU 6 TOPS Neural Processing Unit
    Memory (RAM) 8GB LPDDR4x
    Storage 32GB eMMC
    Sunshade Detachable and angle-adjustable
    Glass Borosilicate float glass, Nuss hardness 0.1/20 (ISO 9385): 480.
    Glass can be replaced directly from the top surface without removing the gate/turnstile.
    Image Acquisition Main Camera Capture area is 126 × 91 mm and supports full-page passport capture
    13 MP sensor, up to 800 DPI resolution
    Supports multi-spectrum imaging: visible light, infrared (IR), and ultraviolet (UV)
    Barcode Camera 5 MP large-depth-of-field camera module
    Communication USB, Ethernet
    USB Interfaces USB 3.1 Gen1 Type-C — used for connection to the host PC
    USB 3.1 Gen1 Type-A — Reader USB
    USB 3.1 Gen1 Type-A — PC USB
    Ethernet Interface Gigabit RJ45 interface
    HDMI Interface HDMI 2.1, supports connection to an external display
    Reset Button Long press for 5 seconds to restore factory settings
    Light Source Includes visible light, IR 850 nm, and UV 365 nm;
    Supports anti-glare illumination for clearer image capture
    Status Indicator Includes power indicator, ready indicator, error indicator, and reader status indicator
    Progress Indicator Document reading progress indicator; supports user-defined display modes
    Buzzer Built-in buzzer
    Document Image Rotation Supports automatic document rotation; images are automatically corrected to the upright orientation regardless of the direction in which the document is placed
    Portrait Cropping Automatically crops the photo area while ensuring the face and head remain fully visible,
    non-photo areas occupy only a small portion of the image, with no glare spots covering the photo
    Machine-Readable Travel Document (MRTD) Reading MRZ Capable of reading all ICAO-compliant machine-readable travel documents, as well as Chinese non-ICAO documents, and parsing MRZ data
    Chip Reading Supports ICAO 9303-compliant electronic passports (ePassports)
    Supports ISO 14443 Type A/B contactless cards
    Supports BAC and PACE for ePassports
    Supports Passive Authentication (PA) to verify document data authenticity
    Supports Active Authentication (AA) to verify chip authenticity
    Data rate: up to 848 Kbps
    VIZ Supports VIZ recognition for passports from multiple countries, including but not limited to the United States, United Kingdom, Japan, Switzerland, Spain, Australia, Canada, Türkiye, China, and nearly 200 other countries and regions
    Chinese Document Recognition OCR Recognition Supports image capture and information extraction for a wide range of Chinese identity and travel documents, including the 2nd generation Resident Identity Card, passport, Mainland Travel Permit for Hong Kong and Macao Residents, Mainland Travel Permit for Taiwan Residents, Travel Permit for Mainland Residents to Taiwan, residence permits for Hong Kong, Macao, and Taiwan residents, Macau Identity Card, Hong Kong Identity Card, border pass, seaman’s certificate, driver’s license, and other identity and travel documents
    Chip/Card Reading Supports reading of the 2nd generation Resident Identity Card, Foreigner’s Permanent Residence Identity Card, residence permits for Hong Kong, Macao, and Taiwan residents, Home Return Permit (both front and back sides), and Taiwan Compatriot Permit (both front and back sides)
    International Document Reading Supports reading ICAO 9303-compliant passports as well as identity cards, vehicle registration certificates, driver’s licenses, and other documents from multiple countries
    Barcode Recognition Supports reading 1D barcodes, 2D barcodes, and QR codes displayed on mobile devices
    Light Sensitivity Built-in photosensor to prevent RF interference;
    Prevents accidental NFC triggering when scanning QR codes on mobile devices
    Operating System Compatibility Supports Windows, Linux, Kylin, UnionTech UOS, HarmonyOS NEXT, Android, iOS, and macOS
    Software Integration Supports WebSocket (Windows, Linux, domestic operating systems)
    SDK (Windows, Linux, domestic operating systems)
    HTTP, TCP, and serial communication protocols
    Android SDK
    Operating Environment Lighting Supports use under strong light conditions, including direct sunlight, up to 50,000 Lux
    Temperature -10°C to 55°C
    Humidity 10%–90% RH, non-condensing
    Power Switch Independent power switch
    Power Supply Uses an external standard power adapter, adapter specifications:
    Input AC 100–240V, 50–60Hz, 0.8A
    Output DC 12V, 2A
    Lock Slot 1 slot for anti-theft lock
    Color Dark gray
    Physical Specifications Dimensions: 185 × 143 × 66.7 mm (L*W*H, excluding sunshade and pressing bar)
    Net Weight: 0.98 kg (excluding sunshade)
    Gross Weight: 1.88 kg
    Service and Maintenance 24/7 technical support via phone, email, and online services (365*24)
    1-year hardware warranty, lifetime maintenance support
